home > products > accessory > drive bay




Indicate two set of liquid cooling system flowing rate. ( English-Metric conversion)
Two set temperature detector. ( English-Metric conversion)
Assign warning temperature value by user.
Water Level Indicator – will beep and display red alert when the coolant is below “low mark.”
Fashion 7 colors back lighted.
Strongly recommend using HARDCANO15 with Thermaltake P400 & P500 pump.



Components
HARDCANO 15 Liquid tank with liquid level sensor x1
Power extended cable x 1 Pump signal cable x2
Temperature sensor x2

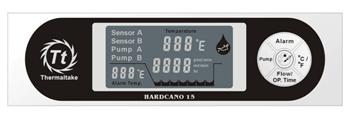

Appearance
Key Introduction

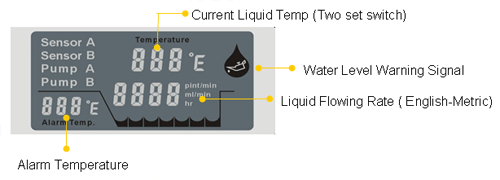

Display Introduction

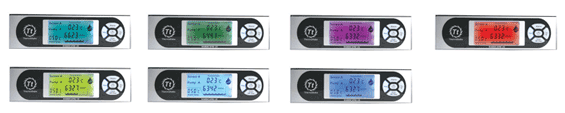

Fashion 7 colors back lighted

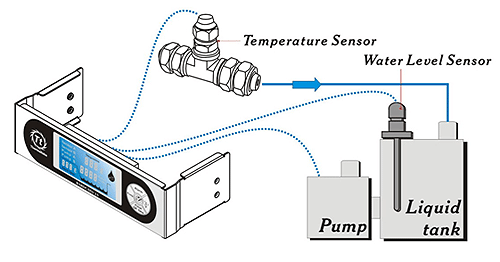

Setup Diagram



P/N A2323
Model HARDCANO 15
Device Space 5.25” Half height device * 1
Dimension (W*H*D) 148*42*70 mm
Backlight LCD display 2 sets of temperature display
2 sets of liquid flow rate display
1 set of water level failure display
Alarm item flash
Fashion 7 colors back lighted
Item Pump A & B switch
Temp. alarm setting
ºC / ºF display switch
LCD color switch
ml/min & pint/min & operation time switch
Alarm Temp. Setting 40 ºC ,50 ºC,60 ºC,70 ºC (60 ºC default)
104 ºF ,122 ºF ,140 ºF ,158 ºF (140 ºF default)
Monitor display temp. range 0 ºC ~ 99 ºC (32 ºF ~ 210 ºF)
Fan Voltage input 12V
Material Plastic and Aluminum alloy
Weight 250g
Over View
Features
Specification
Specification
Specification
Specification
