Ultra-Sensitive
Optical Technology for precision and smooth
operation
Detail Information
Ergonomic & Creative Mouse
Ergonomic design with
streamline shape
Comfortable to hold
3 button Tear-Drop design & Fast
wheel scrolling
Ultra-Sensitive Optical Technology for
precision and smooth operation
Slim Body with Graceful Curve
Thickness : 11.6 ~ 18.7 mm
Other Accessory
USB & PS2 Connector

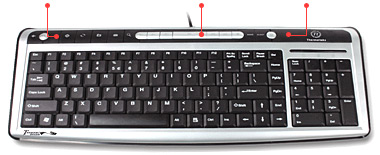

Multimedia & Internet function keys
E-mail &
Internet Keys
Multimedia
Keys
System Keys-
Wake, Sleep, and Power
Hotkey Description
Home page Start the
WWW browser
Volume up Increase
the volume level..
E-mail Start the e-mail
application
Mute Switch the on/off
of the sound
Previous Go back to
the previous page
Stop Stop the play
of the CD
Next Proceed to the
next page
Previous Return to
the previous track of the CD
Search [Search] button
of the internet browser
Play/Pause Toggle
the play/pause of the CD
Refresh Reload web
page
Next Proceed to the
next track of the CD
My favorite button
of the internet browser
POWER Power off Exit
the computer
Stop Stop download
of the web page
SLEEP Suspend Enter
the Suspend mode
Volume down Decrease the Volume
level
Wake up resume from suspend

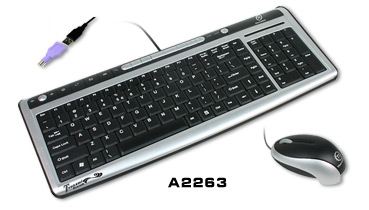

P/N
A2263
Mouse
Keyboard
Dimension
100x63x24mm
Dimension
412
x175x20 mm
Weight
80g
Weight
596
+/- 20g
PC Compatible
Windows
2000/ME/XP
PC Compatible
Windows
2000/ME/XP
Interface
USB
1.1
Interface
USB
1.1/COMBO
Module Type
Optical (800 dpi)
No. of standard keys
104
/105 Keys (by language)
No. of Hot-key
18
keys for hot key
Cable
Length
150
cm
Cable
Length
150
cm
Keys
3
buttons (wheel button on middle button)
Electrical Specification
Working
Voltage: 5.0 0.25 Vdc Current Consumption: 38 mA max Power Consumption : 0.5 Watts max
Safety Approval
FCC class B , CE , BSMI
Safety Approval
FCC
class B, CE, BSMI
Packing
10
pcs / carton
