home > products > Cooler > combo cooling >XB Pro #3 >




Smart Case Fan
Temp. Control
Long Life
Easy connection
Fan Speed

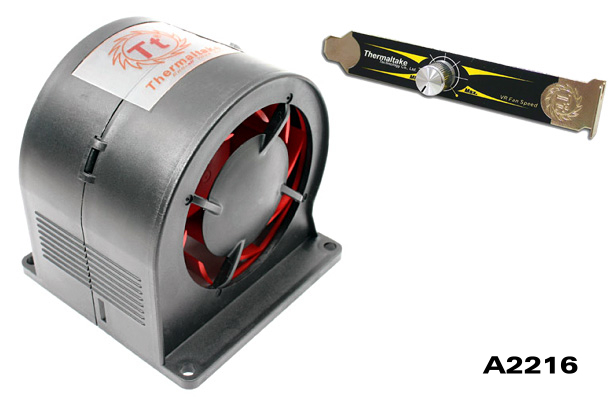

Designed for heat sink utilizing 80x80mm mounting hole pattern
80x80x80mm blower : Two way air induction, increase airflow and produce more efficient CPU cooling
2 ball bearing , extend the operating life
Smart blower fan (3 functions in 1):
1. Full speed when jumper on
2. Temperature control : Fan speed varies according to the temp detected by the sensor
3. Manual control : Adjust fan speed manually
Fan speed controller: Fit on free PCI slot

Detail Information


Application on CPU
heat sink (For 80x80mm)
Design for protecting from harm
Tt Label

Larger blade area, increase airflow

Fan Speed Controller
Fit on PCI slot
3 Functions in 1
AI Function 1:
Full speed (Jumper on)
AI Function 2:
Temperature control from 20C to 55C

AI Function 3:
Adjustable fan speed control from 2000 RPM to 4000 RPM. install in free PCI slot



P/N
A2216
Fan Speed
200020% RPM at 20C
400010% RPM at 55C
Frame Color
Black
Max. Air Flow
21.58 CFM
Fan Dimension
80x80x80mm
Max. Air Pressure
5.71 / 10.17mmH2O
Rated Voltage
12V
Noise
25.0 dBA at 2000RPM
45.0 dBA at 4000RPM
Started Voltage
7V
Bearing Type
2 Ball
Rated Current
1.00A (MAX)
Life Expectation
70,000 hrs
Power Input
2.04 / 12.0 W
Connector
4 Pin
Weight
105 g(0.33lb)


Over View
Features
Specification
Specification
Specification
Specification
