home > products > cooler > combo cooling > fan series >







Long Life
Easy Connection
Fan Speed
Smart Case Fan
Temp. Control
Light


Application for CPU Heat sink

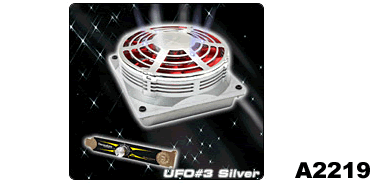

UFO fan series in Silver UV with 6 LED, looks good when light up
UFO design, different from the traditional fan styling
2 ball bearing, extend the operating life
Smart UFO Fan (3 functions in 1) :
1. Full speed when jumper on
2. Temperature control : Fan speed varies according to the temp detected by the sensor
3. Manual control : Adjust fan speed manually
80 to 90mm fan adapter included, improves the performance of CPU heatsink
Fan speed controller fits on PCI slot


Application on CPU heat sink (For 80x80mm)

Detail Information



Twin blades
Multi-directional air intake

4 Blue and 2 white LED lights on the fan grille
Fan adapter, Increase airflow and cooling effectiveness

Functions

AI Function 1:
Full Speed (Jumper On)

AI Function 2:
Temperature control from 20C to 55C

AI Function 3:
Adjustable fan speed control, install in free PCI slot



UFO#3
Noise
17 dBA at 1300RPM
47 dBA at 3600RPM

A2219
Frame Color
Silver UV
Max. Air Flow
26.8 / 81.2 CFM
Fan Dimension
90x90x38mm
Max. Air Pressure
1.5 / 7.8 mm-H2O
Rated Voltage
12V
Bearing Type
2 Ball
Started Voltage
7V
Life Expectation
80,000 Hours
Rated Current
0.15 / 0.48 A
Connector
3 Pin
Power Input
1.8 / 4.80 W
Weight
115g
Fan Speed
130020% RPM at 20C
360010% RPM at 55C




Over View
Features
Specification
Specification
Specification
Specification
