home > products > cooler > retail cooler >




LGA775, K8, AM2
Heatpipe x6
Performance
Low Noise

Patent Information
Country Patent No.
China
200520143163.1
Best performance, supports up to TDP 130W
Heatsink:

‧6 heatpipes, maximized heat transfer

‧All copper structure, provides extremely fast heat conductivity

‧0.2mm thick copper fins and perfect fin rate, perfect weight-to-performance ratio

‧Waved fins to reduce wind shearing noise
3 in 1 application
For LGA775: push pin design for faster install

For K8 and latest socket AM2, tool-less clip, easy to install
RX Type Flow
‧Powerful 9238 reversed fan to reduce the noise from air-rebounding, only 18dBA



Application:
For LGA775
For K8
For AM2

Detailed Feature:
0.2mm thin fin Waved copper fins
Copper base Heatpipes
Heatpipes Heatpipes

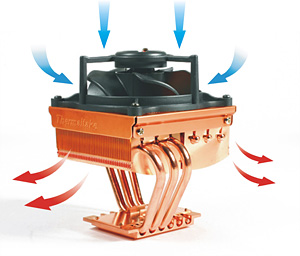

RX Type Flow
Special reversed fan reduces the noise from air-rebounding and create better air flow for heat dissipation

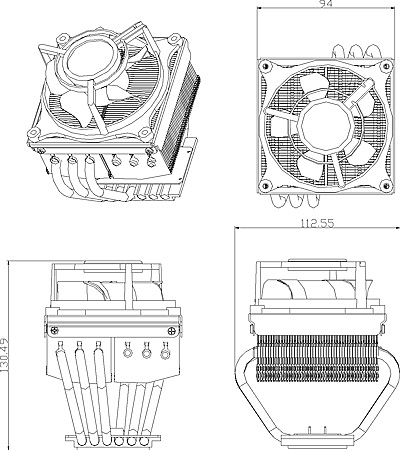

Dimension:

Model CL-P0268-01
Compatibility
Intel CoreTM 2 Extreme (Socket LGA 775)
Intel CoreTM 2 Duo (Socket LGA 775)
Intel Pentium Extreme Edition (Socket LGA 775)
Intel Pentium D (Socket LGA 775)
Intel Pentium 4 (Socket LGA775)
Intel Celeron D (Socket LGA775)
AMD Athlon 64 X2 (Socket 939, AM2)
AMD Athlon 64 FX (Socket 939, AM2)
AMD Athlon 64 (Socket 754, 939, AM2)
AMD Sempron (Socket 754, AM2)
Dimension
112(L) x 94(W) x 125(H) mm
Heatsink Material
Copper Base & Copper Fin (92Fins)
Heatpipe
Copper Tube 6mm x 6
Fan Dimension
92x92x38 mm
Rated Voltage
12V
Started Voltage
6V
Power Input
2.88W
Fan Speed
2200 ± 10% RPM
Max. Air Flow
38.7CFM
Max. Air Pressure
2.69 mm H2O
Noise
18dBA
Connector
3 Pin
Weight
623g
