home > products > coolers > retail cooler >



Patent Information
Country Patent No.
Taiwan
M 240043
China
ZL 03 2 04113.6

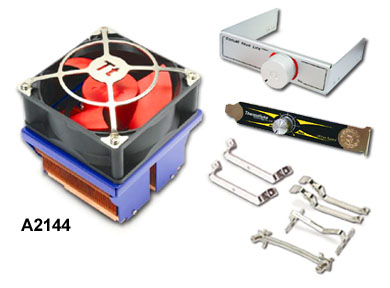

All copper heat sink design (66 fins)
Extreme 4 in 1 cooler, application for LGA 775, K8, P4, K7
8032 Smart case fan, 3 functions in 1 :
- Full speed
- Auto temp control
- VR control function, adjust fan speed manually
Powerful 80x80x32 fan, 2 ball bearing
New design Tt fan grille, without worsening the cooling performance
Best for gaming and overclocking

Detail Information

High density pure copper heatsink
80x80x32mm Fan
Unique ringlike design Powerful AI fan, 2 ball bearing, special triple blades
Triple Blades Fan:
New blade design, increase air flow and eliminate air turbulence
Unique Ringlike Design:
Centralize and guide the air to enhance heat transfer

Alternatives, can be attached to
PCI slot or 3.5 drive bay, choose the one you prefer
New "Tt" fan grille
Functions- Extreme 4 in 1 Cooler

For LGA775
For K8
For P4
For K7
4 in 1 Clip

3 Functions in 1 Fan
AI Function 1: Full speed at 5500 rpm when jumper on
AI Function 2:
Temp. detector 2000 rpm at 20oC~ 5500 rpm at 55o C
( Caution : Avoid excessive pressure to the sensor ! )



Support 3.5 drive bay
Fit on PCI slot
AI Function 3:
Adjustable fan speed control from 2000 rpm to 5500 rpm


P/N
A2144
Power Input
0.96~5.40W
Compatibility

View the list

Fan Speed
2000 10% RPM at 20oC
5500 10% RPM at 55oC
Fan Dimension
80x80x32mm
Max. Air Flow
26.50CFM at 20oC
72.92CFM at 55oC
Heatsink Dimension
82x65.6x49mm (66 fins)
Max. Air Pressure
3.29mmH2O at 20oC
9.06mmH2O at 55oC
Rated Voltage
12V
Noise
21dBA at 2000RPM
48dBA at 5500RPM
Started Voltage
7V
Bearing Type
2 Ball Bearing
Rated Current
0.08~0.45A
Life Expectation
80,000 Hours
Power Connector
4 Pin
Weight
732 g





Over View
Features
Specification
Specification
Specification
Specification
