home > products > chassis > minicase > LANBOX Lite




A fully modular chassis where all component may be removed from the body for

easier installation
Aerodynamically designed ventilation holes to enable the system efficiently
Supports Micro ATX form factor & mini ITX form factor
Supports ATX PS2 power supply
Supports 7’’ LCD monitor (optional)
2 external "5.25" or 7" drive bays are recommended for optical device and Thermaltake

7" LCD monitor only.

Sufficient space for settling Nvidia GeForce 8800 series graphic cards.
(Installation instruction)

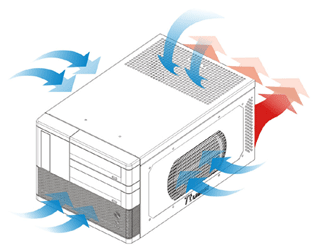

 Efficiently Ventilation


Aerodynamically designed ventilation holes to cool high-end graphic card efficiently
Supports WD Raptor X Hard Disk drive
Ventilated PCI bracket allows for efficient air flow
Front 90mm silent intake fan
Ventilation holes on top allow power supply to draw cool fresh air
Ventilation hole designed to hold an optional 60mm exhaust fan.
Dual rear 60mm silent fans for maximum cooling capability

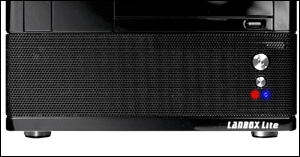

 Front panel mesh design for maximum ventilation


 Piano Mirror Coating
Simple, low-profile and clean design

Combination of Strength and Beauty

 Detailed Features
Foot Stand
Tt LANBOX Series
USB 2.0 x 2, IEEE 1394 Firewire, HD-Audio
Power & Reset Button

Retractable motherboard tray


 Modular Chassis


The need for a compact yet powerful PC has inspired Thermaltake to engineer this unprecedented mobile gaming powerhouse, LANBOX Lite Unlike tower chassis, small form factor PC often lacks sufficient cooling capability or expandability to allow enthusiasts to build a capable gaming machine. Designed from the ground up, LANBOX Lite is a fully modular chassis where all component may be removed from the body for easier installation. Everything from Motherboard Tray to 5.25” Bay Drive cage can be easily removed with a twist of the thumb screws.

Thermal engineering played an equally important part when designing the LANBOX Lite. Today’s most high-end graphic cards or processor often requires added cooling and high-wattage power supply in order to operate at their maximum capability. Before, gaming enthusiasts that opted to build a small form factor PC were limited to mid-end graphic card or processor that resulted in mediocre performance. Today, LANBOX Lite enables the use of most high-end CPU, powerful graphic card and even a full-size PSII; the result, a small form factor PC that is equally powerful as full sized PC.

 NVIDIA SLI Application





Model
VF6000BNS
Case Type
Gaming Cube
Dimension
(W*D*H mm)
300 x 430 x 230
Window side panel
N/A
Chassis Material
SECC Japanese steel
Color
Black
Cooling System
- Front : 90mm fan x 1, 1500rpm
- Rear : 60mm fan x 2, 1800rpm (up to 60mm fan x 3)
Motherboard
Micro ATX form factor & mini ITX form factor
Drive Bays
- 5.25" x 2
- 3.5" x 3 (Exposed x 1, Hidden x 2)
Front I/O
USB 2.0 x 2, IEEE 1394 Firewire, HD-Audio
Expansion Slots
4
Weights
6.3 kg 13.89 lb
