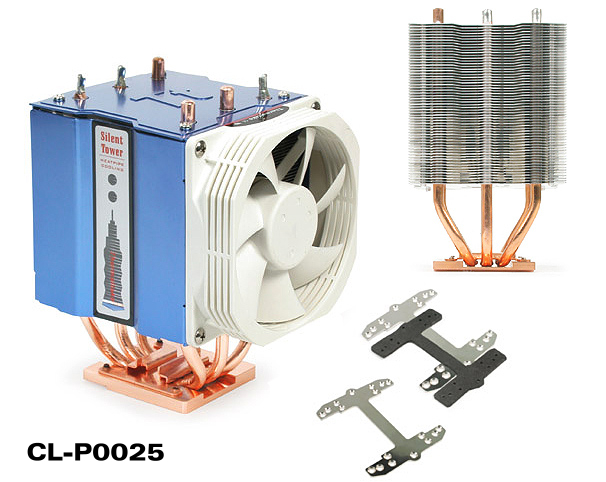

home > products > Cooler > retail cpu cooler > universal series > silenttower







4 in 1 Cooler
Performance
Heatpipe
Low Noise



Patent Information
Country Patent No.
Taiwan
M 251193



High performance cooling solution
Universal 4 in 1 solution , compatible with Intel LGA775. P4 and AMD K7, K8(Included AMD Sempron Series )
90x90x25mm fan, multi-directional air intake increase airflow when keeping the relative noise at minimal
Heatpipe technology, quickly move the heat
Minimize the weight by utilizing aluminum fin, without worsening the performance
Universal clip design provide a secure attachment on the motherboard
Transparent ?TOWER? side window to see through the fins

Detail Information
Heatpipe Technology
Solid connection among the heatpipes, the fins and the copper base to ensure the heat is effectively moved through the fins
Aluminum Fin
Copper Base
"Tower" Side Panel
"Tt" Logo
Universal clip for Intel LGA775, P4 478, AMD K8 and K7, 4 in 1 solution*.

*Note SilentTower is not compatible with any AMD K7 motherboard without mounting holes on it
Silent Fan 90x90x25mm
Increase airflow by intake air from multi-directional
Optional Application
Dual Fan Setup



P/N

               CL-P0025

Heatsink Specification
Fan Specification
Compatibility
View the list
Fan Dimension
90x90x25mm
Rated Voltage
12V
Started Voltage
7V
Rated Current
0.18 A
Dimension
86x80x138mm (59 fins)
Power Input
2.16 W
Fan Speed
2500 ?10% RPM
Max. Air Flow
52.24 CFM
Material
Copper Base & Aluminum Fin
Max. Air Pressure
2.84 mmH2O
Noise
21 dBA
Bearing Type
1 Ball 1 Sleeve
Heatpipe
Copper Tube ( 6 mm) x 3pcs
Life Expectation
60,000 Hours
Connector
3 Pin
Total Weight
640 g (1.41lb)
